基准测试¶

介绍¶

研发能力的基准测试是该领域一个重要的研究问题。我们不断探索基准测试这些能力的方法。当前的基准测试列在此页面上。

开发能力基准测试¶

基准测试用于评估固定数据因素的有效性。它主要包括以下步骤：

读取并准备评估数据
声明要测试的方法并传递参数
声明评估方法并传递参数
运行评估
保存并显示结果

配置¶

pydantic settings rdagent.components.benchmark.conf.BenchmarkSettings¶

Show JSON schema

{
   "title": "BenchmarkSettings",
   "type": "object",
   "properties": {
      "bench_data_path": {
         "default": "example.json",
         "format": "path",
         "title": "Bench Data Path",
         "type": "string"
      },
      "bench_test_round": {
         "default": 10,
         "title": "Bench Test Round",
         "type": "integer"
      },
      "bench_test_case_n": {
         "anyOf": [
            {
               "type": "integer"
            },
            {
               "type": "null"
            }
         ],
         "default": null,
         "title": "Bench Test Case N"
      },
      "bench_method_cls": {
         "default": "rdagent.components.coder.factor_coder.FactorCoSTEER",
         "title": "Bench Method Cls",
         "type": "string"
      },
      "bench_method_extra_kwargs": {
         "additionalProperties": true,
         "title": "Bench Method Extra Kwargs",
         "type": "object"
      },
      "bench_result_path": {
         "default": "result",
         "format": "path",
         "title": "Bench Result Path",
         "type": "string"
      }
   },
   "additionalProperties": false
}

配置:

env_prefix: str = BENCHMARK_

字段:

bench_data_path (pathlib.Path)
bench_method_cls (str)
bench_method_extra_kwargs (dict)
bench_result_path (pathlib.Path)
bench_test_case_n (int | None)
bench_test_round (int)

field bench_data_path: Path = PosixPath('example.json')¶: 基准测试数据

field bench_method_cls: str = 'rdagent.components.coder.factor_coder.FactorCoSTEER'¶: 测试用例使用的方法

field bench_method_extra_kwargs: dict [Optional]¶: 除任务列表外，待测试方法的额外关键字参数

field bench_result_path: Path = PosixPath('result')¶: 结果保存路径

field bench_test_case_n: int | None = None¶: 要运行的测试用例数量；如果未给出，则将运行所有测试用例

field bench_test_round: int = 10¶: 要运行的轮数，每轮可能耗时10分钟

class Config¶

env_prefix = 'BENCHMARK_'¶: 使用 BENCHMARK_ 作为环境变量的前缀

示例¶

bench_test_round 的默认值为10，运行大约需要2小时。要将其从 10 修改为 2，请按照以下所示调整 .env 文件中的环境变量。

BENCHMARK_BENCH_TEST_ROUND=2

数据格式¶

bench_data_path 中的示例数据是一个字典，每个键代表一个因素名称。与每个键相关联的值是包含以下信息的因素数据：

描述：因素的文本描述。
公式：表示模型公式的 LaTeX 公式。
变量：涉及该因素的变量字典。
类别：因素的类别或分类。
难度：实现或理解该因素的难度级别。
gt_code：与该因素相关联的一段代码。

以下是该数据格式的示例：

{
    "Turnover_Rate_Factor": {
        "description": "A traditional factor based on 20-day average turnover rate, adjusted for market capitalization, which is further improved by applying the information distribution theory.",
        "formulation": "\\text{Adjusted Turnover Rate} = \\frac{\\text{mean}(20\\text{-day turnover rate})}{\\text{Market Capitalization}}",
        "variables": {
            "20-day turnover rate": "Average turnover rate over the past 20 days.",
            "Market Capitalization": "Total market value of a company's outstanding shares."
        },
        "Category": "Fundamentals",
        "Difficulty": "Easy",
        "gt_code": "import pandas as pd\n\ndata_f = pd.read_hdf('daily_f.h5')\n\ndata = data_f.reset_index()\nwindow_size = 20\n\nnominator=data.groupby('instrument')[['TurnoverRate_30D']].rolling(window=window_size).mean().reset_index(0, drop=True)\n# transfer to series\nnew=nominator['TurnoverRate_30D']\ndata['Turnover_Rate_Factor']=new/data['TradableACapital']\n\n# set the datetime and instrument as index and drop the original index\nresult=pd.DataFrame(data['Turnover_Rate_Factor']).set_index(data_f.index)\n\n# transfer the result to series\nresult=result['Turnover_Rate_Factor']\nresult.to_hdf(\"result.h5\", key=\"data\")"
    },
    "PctTurn20": {
        "description": "A factor representing the percentage change in turnover rate over the past 20 trading days, market-value neutralized.",
        "formulation": "\\text{PctTurn20} = \\frac{1}{N} \\sum_{i=1}^{N} \\left( \\frac{\\text{Turnover}_{i, t} - \\text{Turnover}_{i, t-20}}{\\text{Turnover}_{i, t-20}} \\right)",
        "variables": {
            "N": "Number of stocks in the market.",
            "Turnover_{i, t}": "Turnover of stock i at day t.",
            "Turnover_{i, t-20}": "Turnover of stock i at day t-20."
        },
        "Category": "Volume&Price",
        "Difficulty": "Medium",
        "gt_code": "import pandas as pd\nfrom statsmodels import api as sm\n\ndef fill_mean(s: pd.Series) -> pd.Series:\n    return s.fillna(s.mean()).fillna(0.0)\n\ndef market_value_neutralize(s: pd.Series, mv: pd.Series) -> pd.Series:\n    s = s.groupby(\"datetime\", group_keys=False).apply(fill_mean)\n    mv = mv.groupby(\"datetime\", group_keys=False).apply(fill_mean)\n\n    df_f = mv.to_frame(\"MarketValue\")\n    df_f[\"const\"] = 1\n    X = df_f[[\"MarketValue\", \"const\"]]\n\n    # Perform the Ordinary Least Squares (OLS) regression\n    model = sm.OLS(s, X)\n    results = model.fit()\n\n    # Calculate the residuals\n    df_f[\"residual\"] = results.resid\n    df_f[\"norm_resi\"] = df_f.groupby(level=\"datetime\", group_keys=False)[\"residual\"].apply(\n        lambda x: (x - x.mean()) / x.std(),\n    )\n    return df_f[\"norm_resi\"]\n\n\n# get_turnover\ndf_pv = pd.read_hdf(\"daily_pv.h5\", key=\"data\")\ndf_f = pd.read_hdf(\"daily_f.h5\", key=\"data\")\nturnover = df_pv[\"$money\"] / df_f[\"TradableMarketValue\"]\n\nf = turnover.groupby(\"instrument\").pct_change(periods=20)\n\nf_neutralized = market_value_neutralize(f, df_f[\"TradableMarketValue\"])\n\nf_neutralized.to_hdf(\"result.h5\", key=\"data\")"
    },
    "PB_ROE": {
        "description": "Constructed using the ranking difference between PB and ROE, with PB and ROE replacing original PB and ROE to obtain reconstructed factor values.",
        "formulation": "\\text{rank}(PB\\_t) - rank(ROE_t)",
        "variables": {
            "\\text{rank}(PB_t)": "Ranking PB on cross-section at time t.",
            "\\text{rank}(ROE_t)": "Ranking single-quarter ROE on cross-section at time t."
        },
        "Category": "High-Frequency",
        "Difficulty": "Hard",
        "gt_code": "#!/usr/bin/env python\n\nimport pandas as pd\n\ndata_f = pd.read_hdf('daily_f.h5')\n\ndata = data_f.reset_index()\n\n# Calculate the rank of PB and ROE\ndata['PB_rank'] = data.groupby('datetime')['B/P'].rank()\ndata['ROE_rank'] = data.groupby('datetime')['ROE'].rank()\n\n# Calculate the difference between the ranks\ndata['PB_ROE'] = data['PB_rank'] - data['ROE_rank']\n\n# set the datetime and instrument as index and drop the original index\nresult=pd.DataFrame(data['PB_ROE']).set_index(data_f.index)\n\n# transfer the result to series\nresult=result['PB_ROE']\nresult.to_hdf(\"result.h5\", key=\"data\")"
    }
}

确保数据放置在 FACTOR_COSTEER_SETTINGS.data_folder_debug 中。数据文件应为 .h5 或 .md 格式，并且不得存储在任何子文件夹中。LLM-Agents 将审核文件内容并执行任务。

运行基准测试¶

完成安装与配置后启动基准测试。

dotenv run -- python rdagent/app/benchmark/factor/eval.py

完成后，将生成一个 pkl 文件，其路径将在控制台的最后一行打印。

显示结果¶

analysis.py 脚本从 pkl 文件读取数据并将其转换为图像。请修改 rdagent/app/quant_factor_benchmark/analysis.py 中的 Python 代码，以指定 pkl 文件的路径和 png 文件的输出路径。

dotenv run -- python rdagent/app/benchmark/factor/analysis.py <log/path to.pkl>

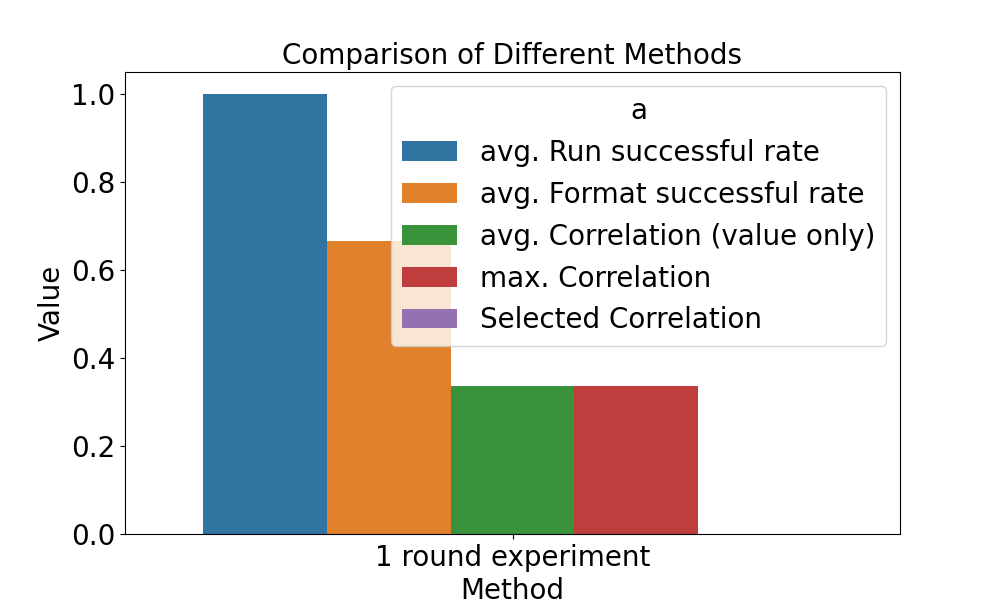

一个 png 文件将被保存到指定路径，如下所示。
